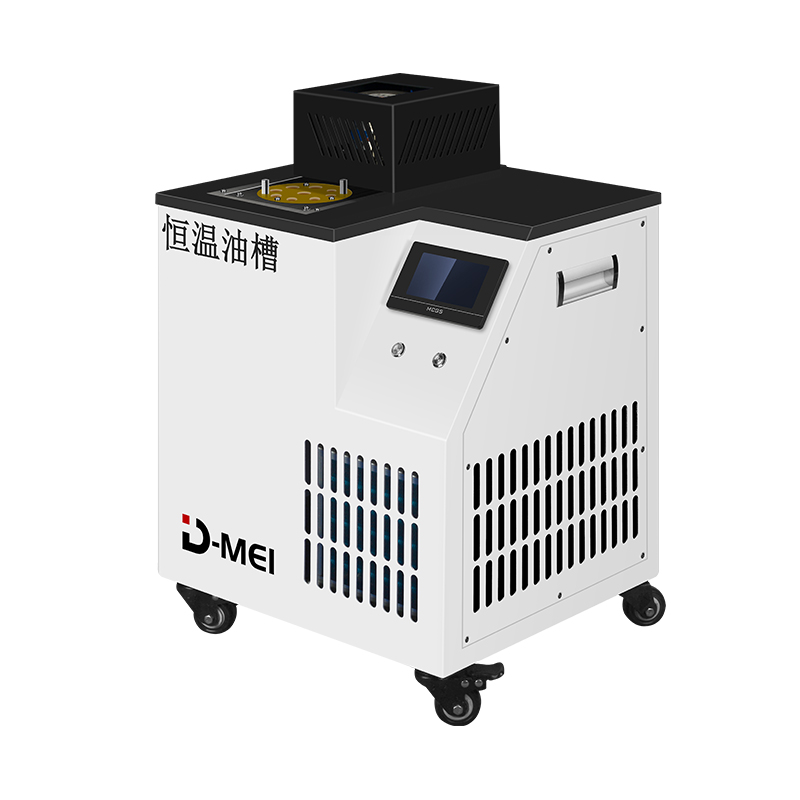

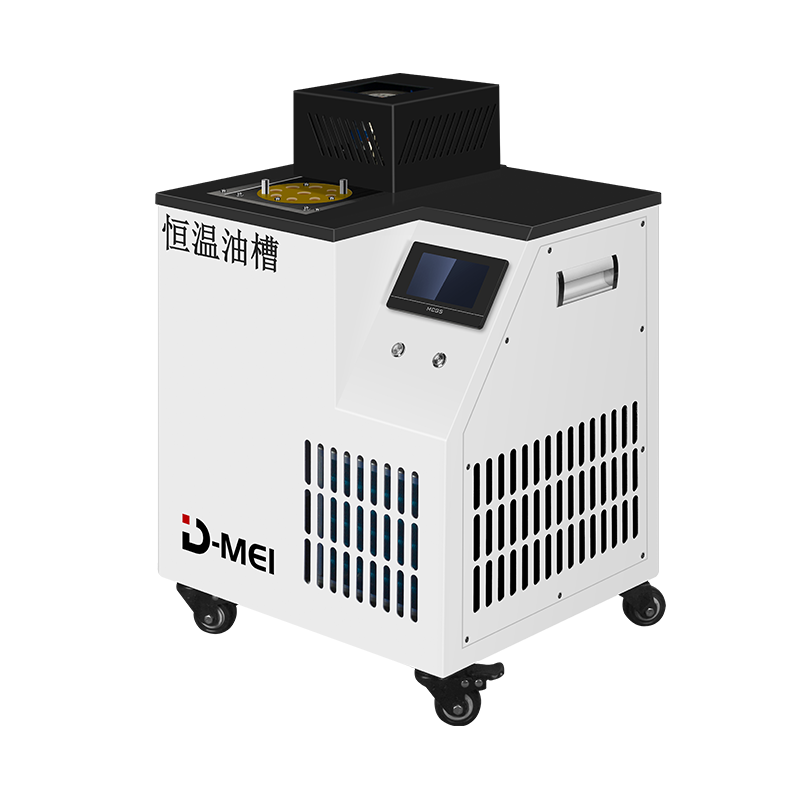

DY-HTS300 precision constant temperature oil tank (90℃ ~ 300℃) is a high-precision automatic temperature verification equipment, with high temperature control accuracy, uniform temperature field, good stability and easy operation.
The inner liner and outer shell are made of stainless steel. Products for metering department for the first, second - class standard mercury thermometer, Beckman thermometer.
Industrial platinum thermal resistor, standard copper - constantan thermocouple test, also can be used as a high precision heat source for production, scientific research.
[Technical indicators]
Product Name
Thermostatic Oil Bath
Model
DY-HTS300
Range of Working Temperature(℃)
90～300
Temperature Fluctuations(℃/10min)
±0.01
Temperature Uniformity(℃)
Horizontal temperature field ≤0.01℃; Vertical temperature field ≤0.01℃
Transient Time(min)
≤10
Working Area(mm)
Ф150×480
Volume(L)
23
Working Medium
201# Methyl silicone oil
Ambient Temperature(℃)
Lower than 35
Total Power(kw)
3 kw
Power Supply(v/50hz)
220V
Dimensions(mm)
750×550×1100
Outer shell material of the inner bladder
Stainless steel hairline plate
Weight(KG)
100
